Position:home>>Product>>Spiral ChuteProduct

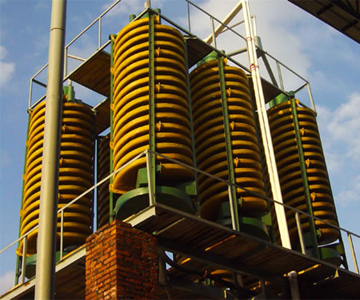

Spiral chute
Spiral chute is a scientific product. It is produced by our company through many years concentrating experience. It is ideal concentrating equipment, especially for the sand ore of seashore, river sand, etc. The advantages are reasonable structure, easy installation, great processing capacity and smooth operation, large handling capacity, clear separation, high efficiency, etc. This product is made of the chlorine plastic, so it is moisture proof, antirust, and corrosion resistance, resilient for feeding amount and density, granularity mineral taste, no noise.
This applies to sorting size 0.3 - 0.02 mm thin materials of iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, P B ore, tungsten ore, tin mine, tantalum and niobium mine, as well as other non-ferrous metals. Precious metals and non-metallic mineral with the proportion differences. The process of sorting equipment is stable, easy to control, to allow changes in the thickness of ore concentration, concentration is high, high recovery, small footprint, less water consumption, simple structure, no driving force, big capacity, simple to install, convenient operation, small investment and so on advantages.
Technical characteristics and operating conditions:
|
Model |
5LL-1200 |
5LL-900 |
5LL-600 |
5LL-400 | |
|
External diameter（mm） |
1200 |
900 |
600 |
400 | |
|
Screw distance（mm） |
900/720/540 |
675/540/405 |
450/360/270 |
240/180 | |
|
Ratio(scroll distance/diameter) |
0.75/0.6/0.45 |
0.75/0.6/0.45 |
0.75/0.6/0.45 |
0.6/0.45 | |
|
Transverse obliquity |
9° |
9° |
9° |
9° | |
|
Max. scroll buckets for each machine |
4 |
4 |
3 |
2 | |
|
Feeding granularity(mm) |
0.3-0.03 |
0.3-0.03 |
0.2-0.02 |
0.2-0.02 | |
|
Feeding thickness(%) |
25-55 |
25-55 |
25-55 |
25-55 | |
|
Capacity(t/h) |
4-6 |
2-3 |
0.8-1.2 |
0.15-0.2 | |
|
Dimensions |
Length(mm) |
1360 |
1060 |
700 |
460 |
|
Width(mm) |
1360 |
1060 |
700 |
460 | |
|
Height(mm) |
5230 |
4000 |
2600 |
1500 | |
|
Weight(kg) |
600 |
400 |
150 |
50 | |
Yu Feng Heavy Industry is a leading domestic manufacturer of Spiral Chute manufacturer,sales to many countries and regions around the world.Please contact our Spiral Chute department,in order to know more information about Spiral Chute.
