Position:home>>Product>>ClassifierProduct

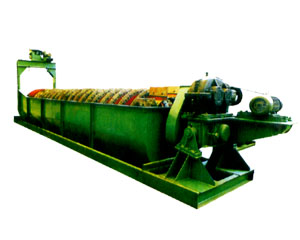

Classifier
This machine is the main equipment in mineral dressing plants, for grading ore pulp size. It is also used for dewatering and other works in sand washing. It’s divided to single spiral and double spirals; according the difference of spiral’s depth in overflow surface, it’s also divided to high weir type and sinking type.
For different types and detailed specifications, please feel free to contact our company. Your any kind inquiry will be highly appreciated.
Main Technical Parameters of Spiral Classifier:
|
Type |
Model |
Screw Dia （mm） |
Flume Length（mm） |
Spiral Speed（r/min） |
Capacity（t/d） |
Gradient （°） |
Screw Weight（t） |
Power（kw） |
Overall Dimension（mm） |
Weight（kg） | ||
|
Return Sand |
Overflow |
Driving Motor |
Elevating Motor | |||||||||
|
High Weir Classifier |
FG500 |
φ500 |
4500 |
8～12.5 |
135
～210 |
32 |
14-18.5 |
0.75 |
1.5 |
|
6409×712×1599 |
1980 |
|
FG750 |
φ750 |
5500 |
6.0-10.0 |
340
～570 |
65 |
14-18.5 |
1.1 |
3.0 |
|
6300×1250×1780 |
3005 | |
|
FG-1000 |
φ1000 |
6500 |
5.0～8.0 |
675
～1080 |
110 |
14-18.5 |
1.9 |
7.5 |
|
7100×1330×2390 |
5310 | |
|
FG-1200 |
φ1200 |
6500 |
5.0～8.0 |
1170
～1870 |
155 |
14-18.5 |
3.7 |
7.5 |
0.4 |
7560×1572×2328 |
8000 | |
|
FG-1500 |
φ1500 |
8300 |
4.0～6.0 |
1830
～2740 |
235 |
14-18.5 |
5.1 |
11 |
0.4 |
9740×2000×4100 |
9800 | |
|
FG-2000 |
φ2000 |
8400 |
3.0～3.5 |
3240
～5400 |
400 |
14-18.5 |
7.1 |
11 |
2.8 |
10000×2570×4468 |
20500 | |
|
FG-2400 |
φ2400 |
9200 |
2.5～4.0 |
4650
～7450 |
580 |
14-18.5 |
10.2 |
11-15 |
2.8 |
10800×2980×4700 |
25700 | |
|
2FG-1200 |
φ1200 |
6500 |
5.0～8.0 |
2340
～3740 |
310 |
14-18.5 |
3.7×2 |
5.5×2 |
0.4×2 |
8060×3400×3100 |
13300 | |
|
2FG-1500 |
φ1500 |
8300 |
4.0～6.0 |
3660
～5480 |
470 |
14-18.5 |
5.1×2 |
7.5×2 |
0.4×2 |
9740×3630×4050 |
22100 | |
|
2FG-2000 |
φ2000 |
8400 |
3.0～5.5 |
6480～10800 |
800 |
14-18.5 |
7.1×2 |
11×2 |
2.8×2 |
10000×4600×4470 |
36500 | |
|
2FG-2400 |
φ2400 |
9200 |
2.5～4.0 |
9300
-14900 |
1160 |
14-18.5 |
10.2×2 |
15×2 |
2.8×2 |
10800×5400×4700 |
45800 | |
|
2FG-3000 |
φ3000 |
12500 |
2.0～3.2 |
14600～23400 |
1785 |
14-18.5 |
20×2 |
18.5×2 |
4×2 |
15600×6640×6350 |
73000 | |
|
Submerged Classifier |
FC-1000 |
φ1000 |
7600 |
5.0～8.0 |
675
～1080 |
85 |
14-18.5 |
2.4 |
7.5 |
0.4 |
10000×1680×4000 |
6000 |
|
FC-1200 |
φ1200 |
8400 |
5.0～8.0 |
1170
～1870 |
120 |
14-18.5 |
4.8 |
7.5 |
0.4 |
10000×1880×4190 |
9280 | |
|
FC-1500 |
φ1500 |
10500 |
4.0～6.0 |
1830
～2740 |
185 |
14-18.5 |
6.4 |
11 |
0.8 |
12200×2100×4900 |
12570 | |
|
FC-2000 |
φ2000 |
12900 |
3.0～3.5 |
3240
～5940 |
320 |
14-18.5 |
8.6 |
11-15 |
2.8 |
14500×2880×5500 |
29100 | |
|
FC-2400 |
φ2400 |
14200 |
2.5～4.0 |
4650
～7450 |
455 |
14-18.5 |
12.8 |
11-18.5 |
4.0 |
15900×3300×6000 |
41000 | |
|
2FC-1200 |
φ1200 |
8400 |
5.0～8.0 |
2340
～3740 |
240 |
14-18.5 |
4.8×2 |
7.5×2 |
0.4×2 |
10000×3700×4190 |
19600 | |
|
2FC-1500 |
φ1500 |
10500 |
4.0～6.0 |
3660
～5480 |
370 |
14-18.5 |
6.4×2 |
7.5×2 |
0.8×2 |
12200×3840×4850 |
30700 | |
|
2FC-2000 |
φ2000 |
12900 |
3.0～5.5 |
6480～11800 |
640 |
14-18.5 |
8.6×2 |
15×2 |
2.8×2 |
14500×4910×5500 |
50000 | |
|
2FC-2400 |
φ2400 |
14200 |
2.5～4 |
9300～14900 |
910 |
14-18.5 |
12.8×2 |
18.5×2 |
4×2 |
15900×5730×6000 |
67900 | |
|
2FC-3000 |
φ3000 |
14300 |
2.0～3.2 |
14600～23400 |
1410 |
14-18.5 |
24.1×2 |
22×2 |
4×2 |
17700×7000×8000 |
84900 | |
|
|
Yu Feng Heavy Industry is a leading domestic manufacturer of Classifier manufacturer,sales to many countries and regions around the world.Please contact our Classifier department,in order to know more information about Classifier.
