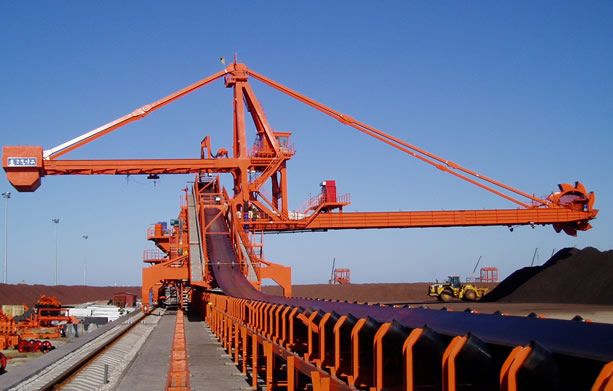

Circular stacker reclaimer

Circular reclaimer is a continuous and effective bulk material handling mechanical, widely used in power plant, ports, steel, chemical plants, cement and other basic industry raw material field, apply and bar or circular storage yard, which can realize the coal, iron ore, such as lime disperses the shape of raw materials, taking the continuous operation. Dalian Mechanical and Electrical Power Heavy Industry Co.,Ltd in mass production reclaimer, accumulated the rich experience in design and make, can be designed and manufactured by the rated capacity of 100 ~ 6000t/h, turning radius 20 ~ 55m, suitable user the different needs of different specifications and various types of pile take equipment, mainly includes material piling machine, take the feeder, reclaimer and blending yard heap take equipment, etc.

Main technical parameters of Circular stacker reclaimer:

Name
XSYφ90m
Stacker reclaimer
XSYφ80m
Stacker reclaimer
XSYφ60m
Stacker reclaimer
Stockpile
Form

Circular, cover-type
Ultimate capacity
m3
42620
26600
11402
Active capacity
m3
28827
16800
9774
Height of the piles
mm
16016
14250
10270
Diameter of round track
m
90
80
60
Material performance
Material

Limestone ,limestone +Clay
Partical size
mm
＜75
≤80
≤75
Humidity
﹪
≤8
Humidity
﹪
Angle of repose
°
38
38~41
38
Bulk density
t/m3
1.45
Density
t/m3
Performance of stacker
Form of stockpile

Consecutive
Layers of stockpile
Layer
＞400
Radius of stockpile
mm
23850
21750
16000
Width of belt
mm
1000
1000
800
Velocity/power
m/s
kw
2.59
45
2.5
30
1. 6
2.22
Stacking capability
m3/h
690
≤550
276
Rotation speed/power
r/min
kw
0.1
4
0.114
2.2
0.1154
2.2
Performance of reclaimer
Form of reclaimer

Reclaiming from the section
Width x height of scraper
mm
1600×300
1800×350
1200×300
Traveling speed/power of scraper
m/s kw
0.57
90
0.5
75
0.51
37
Reclaimer capability
m3/h
345
410
207
Traveling speed/power of reclaimer
m/min kw
0.0047～0.047/2
0.55
0.0065～0.065/2
0.25
0.0046～0.046/2
0.55
Traveling speed of shunting car
m/min kw
7.28
2×5.5
5.8
2×5.5
9.6
2×5.5
Motor power of pump of harrow hydraulic arrangement
kw
45
30
30
Total installed capacity
kw
225
175
142
Control mode

Remote control, Auto control or Manual control on spot
Power supply

Power 50HZ，380V


Yu Feng Heavy Industry is a leading domestic manufacturer of Circular stacker reclaimer manufacturer,sales to many countries and regions around the world.Please contact our Circular stacker reclaimer department,in order to know more information about Circular stacker reclaimer.
