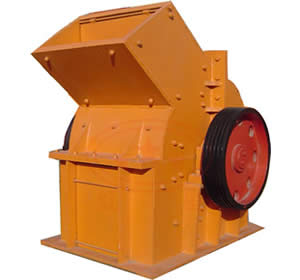

Hammer crusher

Hammer crusher is to crush the material by the high-speed rotating hammers. This ring hammer crusher has the characteristics of simple structure, large crushing ratio, and high production efficiency. It can be used to crush the dry or wet materials. It is used to crush the mid-hard and low-abrasive materials, whose compressive strength is not more than 100MPa, and whose moisture percentage is not more than 15%. The common materials are coal, salt, chalk, gypsum, limestone, and so on. It is also used to crush the wood pieces, paper, and asbestos cement waste, which are fiber-structural, elastic and strong tenacity. Ring hammer crusher is not only used in aggregate or sand production line, but also in mineral selection process instead of cone crusher.
 PCH Series Ring Hammer Crusher is used to crush coal, especially brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 15%. It has the following features: energy-saving, fine output size, higher efficiency, and lower noise, less dust pollution and so on.



Application of Hammer Crusher:
PCH series ring hammer crusher is a machine which is utilized to crush the brittle materials, like coal, coal gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100MPa, and its moisture content does not surpass 15%. The discharge opening can be adjusted according to the customer’s requirements.



Working Principle:
PCH series ring hammer crusher is an impact rotor-type crusher with hammer ring. The materials are impacted and crushed by the high-speed rotating hammers after entering the chamber. The crushed materials get the impetus energy from the hammers, and then they will impact on the crushing plate. After the secondary crushing process, the materials fall on the sieve plate. Then the materials are crushed again after being sheared, extruded, and grinded, and then drop out. Unbroken matters enter the metal collector, which are cleaned periodically.

Main technical parameters of :

Category	Model	Material-in size (mm)	Material-out size(mm)	Capacity(m3/h)	Motor		Weight(t)	Overall dimensions ((L*W*H))(mm)
					Progression	Power(kw)
Hammer crusher	PCΦ400×300	≤100	≤10	5-10	4	11	0.8	900×670×860
	PCΦ600×400	≤250	≤30	10-22	4	22	2.26	1200×1050×1200
	PCΦ800×600	≤250	≤35	18-40	4	55	4.8	1310×1180×1310
	PCΦ1000×800	≤350	≤35	25-50	4	75	5.9	1600×1390×1575
	PCΦ1000×1000	≤350	≤35	30-55	6	132	8	1800×1590×1775
	PCΦ1250×1250	≤350	≤35	35-65	6	180	14	2060×1600×1890
	PCΦ1400×1400	≤350	≤35	50-100	6	280	32	2365×1870×2220
	PCΦ1600×1600	≤350	≤35	100-150	8	480	37.5	3050×2850×2800



Yu Feng Heavy Industry is a leading domestic manufacturer of Hammer crusher manufacturer,sales to many countries and regions around the world.Please contact our Hammer crusher department,in order to know more information about Hammer crusher.
