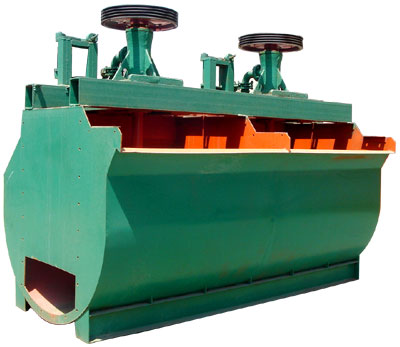

Floatation machine
The flotation machine is the latest design to use the circular tank concept and combines the benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize floatation performance for all roughing, cleaning and scavenging duties.
The machine can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine. It features: high inhalation, low power. Each chute can inhale gas, sink magma, separate. There is no need of accessory equipments horizontal equipment. It is easy to change the flow chart. The cycling way of magma is very reasonable. It can reduce the impurities to a great extent. There is automatic equipment on the magma surface. It is easy to adjust. The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward.
The machine can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine. It features: high inhalation, low power. Each chute can inhale gas, sink magma, separate. There is no need of accessory equipments horizontal equipment. It is easy to change the flow chart. The cycling way of magma is very reasonable. It can reduce the impurities to a great extent. There is automatic equipment on the magma surface. It is easy to adjust. The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward.
Technical Parameters of Model SF Flotation Machine:
|
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 | |
|
Tank Volume（m3） |
0.37 |
0.7 |
1.2 |
2.8 |
4 | |
|
Impeller Dia（mm） |
300 |
350 |
450 |
550 |
650 | |
|
Capacity（m3/min） |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 | |
|
Impeller Rotate Speed（m3/min） |
352 |
400 |
312 |
268 |
238 | |
|
Motor |
Model |
①Y90L-4 |
①Y100L2-4 |
①Y132M2-6 |
①Y160L-6 |
①Y180L-6 |
|
②Y90S-4 |
②Y90S-4 |
②Y90S-4 |
②Y90S-4 |
②Y90L-4 | ||
|
Power（kw） |
①1.5 |
①3 |
①5.5 |
①11 |
①15 | |
|
②1.1 |
②1.1 |
②1.1 |
②1.1 |
②1.5 | ||
|
Overall Dimension（mm） |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 | |
|
Unit Weight（kg） |
468 |
600 |
1373 |
2338 |
2660 | |
|
Technical Parameters of XJK Series Flotation Machinery: |
|
Model |
XJK-0.35（3A） |
XJK-0.62（4A） |
XJK-1.1（5A） |
XJK-2.8（6A） |
XJK-5.8（7A） | ||
|
Effective Volume（m3） |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 | ||
|
Capacity（m3/min） |
0.18～0.4 |
0.3～0.9 |
0.6～1.6 |
1.5～3.5 |
3～7 | ||
|
Rotate Speed（r/min） |
470 |
400 |
330 |
280 |
240 | ||
|
Impeller Dia (mm) |
300 |
350 |
500 |
600 |
750 | ||
|
Motor |
Model |
Rotator |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y200L2-6（Y225M-6） |
|
Scraper |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 | ||
|
Power（kw） |
Impeller Motor |
1.5 |
3 |
5.5 |
11 |
22（30） | |
|
Scraper Motor |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 | ||
|
Weight：（t/Single Tank） |
0.43 |
0.86 |
1.38 |
2.33 |
3.533 | ||
Yu Feng Heavy Industry is a leading domestic manufacturer of Floatation machine manufacturer,sales to many countries and regions around the world.Please contact our Floatation machine department,in order to know more information about Floatation machine.
